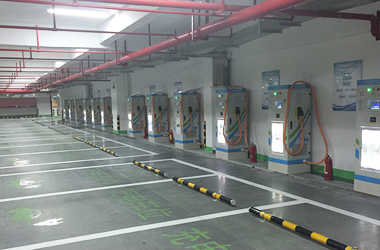

In recent years, in response to global warming and climate change caused by greenhouse gas emissions，major countries have focused on promoting electric vehicles to replace traditional fuel vehicles. And the construction of charging piles is very important in the promotion of new energy vehicles.Therefore, a large number of charging pile projects have emerged around the world.

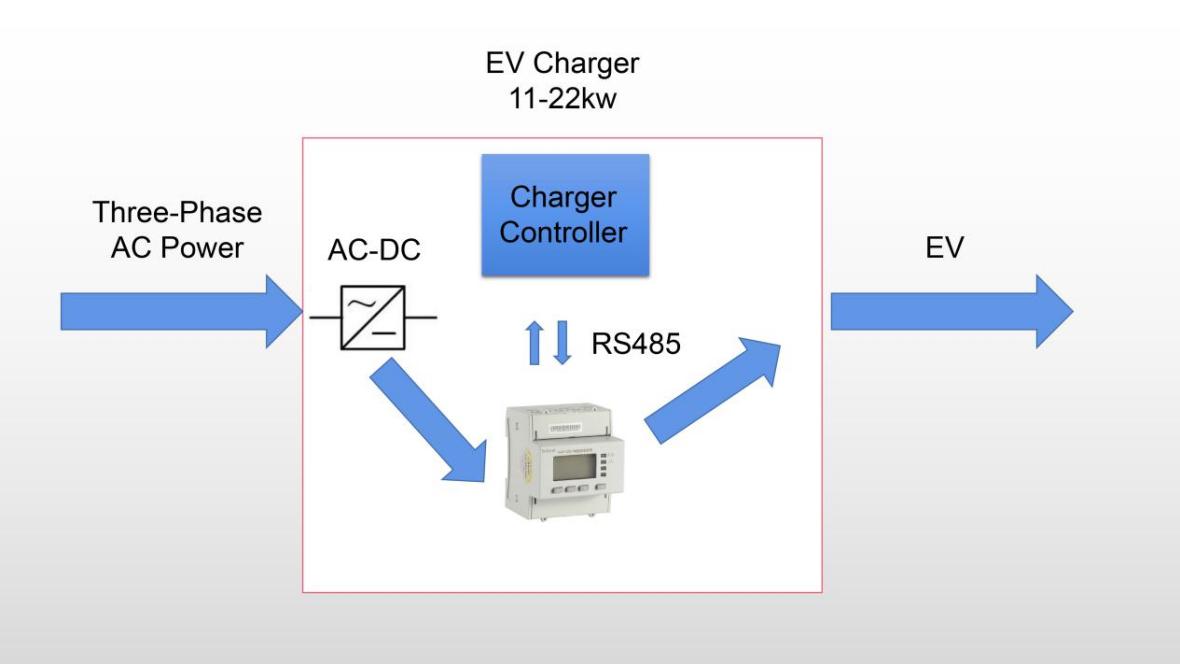

Single phase and three phase AC, DC energy meters complies with the corresponding IEC standards and can be used in all kinds of AC and DC charging piles to realize charging energy measurement, and can transmit electrical parameters in real time through communication.
It can measure and display electrical parameters such as voltage, current, power, energy, and support RS485 communication and electric energy pulse output.
1. Accuracy
Energy Accuracy: Class 0.5S or Class 1
2. Optional Configuration
Optional multi tariff.
3. Certificate
With CE or IEC certificed.
Item | Shape | Type | Function |
Single Phase AC Energy Meter |
| ADL10-E | Din rail mounted; single-phase 60A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol). |
| ADL100-ET | Din rail mounted; single-phase 60A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol). energy pulse output; optional multi tariff. | |
| ADL200 | Din rail mounted; single-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy, etc.; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. | |
Three Phase AC Energy Meter |
| ADL400 | Din rail mounted; three-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. |
| ADL3000-E | Din rail mounted; three-phase 80A, 50/60Hz input; measurement of electrical parameters such as voltage, current, power, energy; RS485 communication (Modbus protocol); energy pulse output; optional multi tariff. | |
DC Energy Meter |
| PZ72(L)-DE | Panel mounted, measure DC voltage, current, power; measure DC energy; direct connect voltage 0-1000V; current measurement support 75mV output of shunt, support 0-5V, 0-20mA output of hall; RS485(Modbus protocol) |
| DJSF1352 | Wall mounted, measure DC voltage, current, power; measure DC energy; direct connect voltage 0-1000V; current measurement supports 75mV output of shunt, supports 0-5V, 0-20mA output of hall; RS485(Modbus protocol) | |
| DJSF1352-RN | Din-rail mounted, support optional two-channel DC voltage, current, power measurement; measure DC energy; direct connect voltage 0-1000V; current measurement support shunt 75mV output, support Hall sensor 0-5V, 0-20mA output; RS485 communication (Modbus protocol) | |
Shunt |
| AFL-T | Common Specification: 300A/75mV |
Hall Sensor |
| AHKC | Common Specification: 1000A/5V |
