Hall sensors are divided into three categories according to the principle: open loop Hall current sensor, closed loop Hall current sensor, Hall voltage sensor.
Type | Rated Input | Rated Output | Power Supply | Accuracy |
Open loop Hall sensor | 50A～20000A | 5V/4～20mA | ±15V/24V | class1 |
Closed-loop Hall sensor | 10A～2000A | 50mA/100mA/200mA | ±15V | class0.5 |
Hall voltage transducer | 100V～5000V | 5V/50mA | 15V/24V | class0.5 |

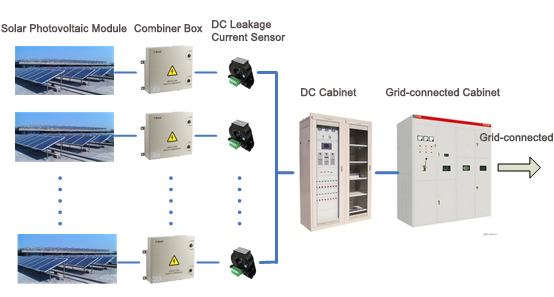

Photovoltaic

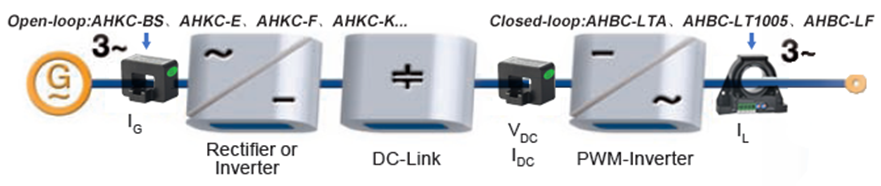

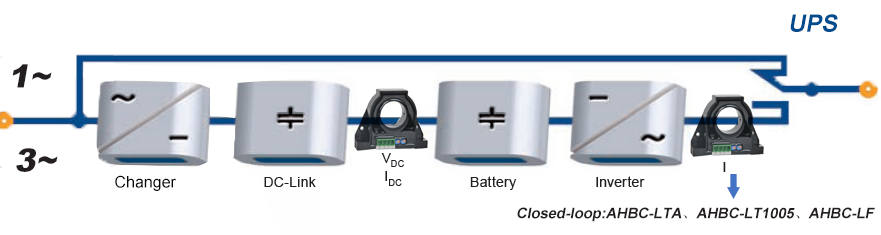

UPS
Solar and wind energy

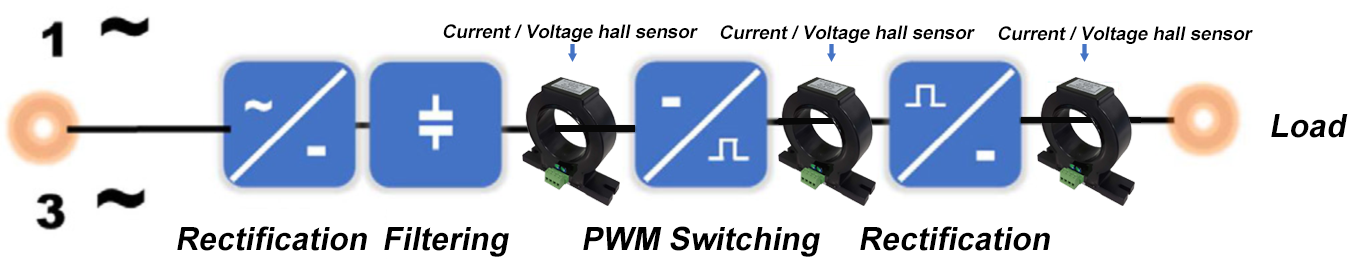

Electric welding machine

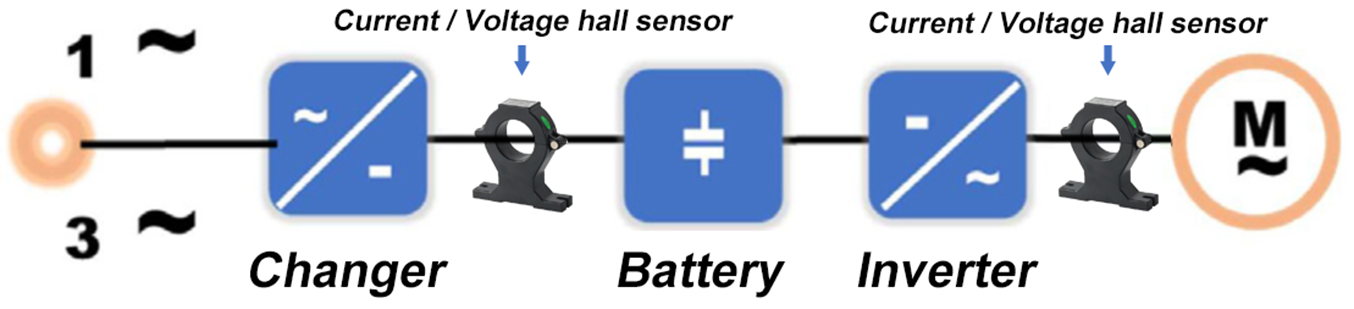

Motor servo system

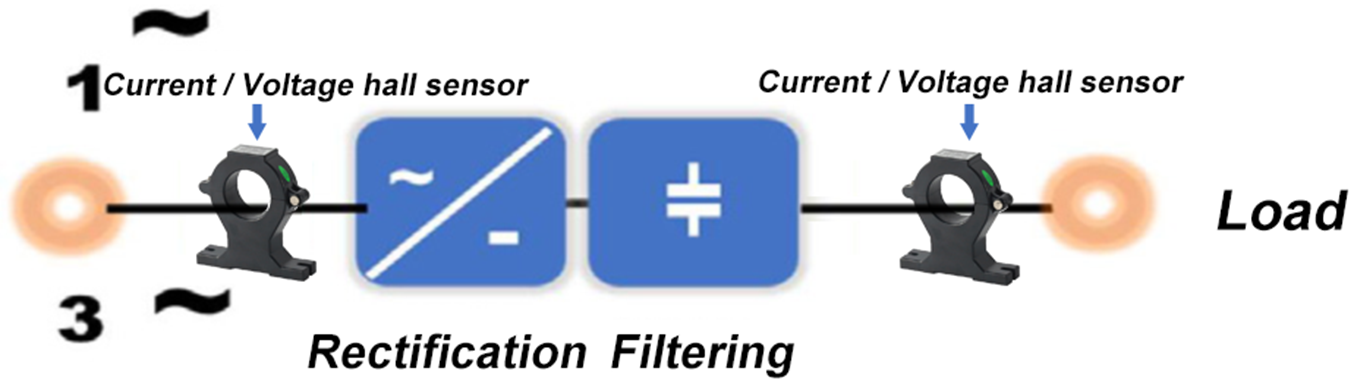

Rectifier
Type | Picture | Function |
Open loop Hall sensor |
| 1.Class1 |
Closed-loop Hall sensor |
| 1.Class0.5 |
Hall voltage transducer |
| 1.Class0.5 |
Certificate
With EMC、CE、RoHs certificed.
Shape | Type | Rated | Rated | Measuring Aperture | Power Supply | Application |

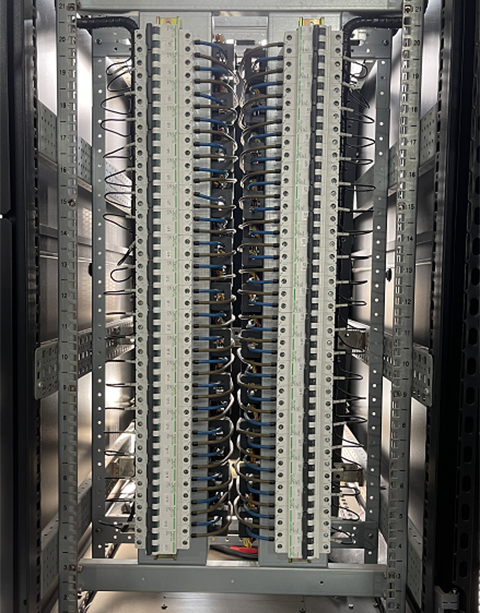

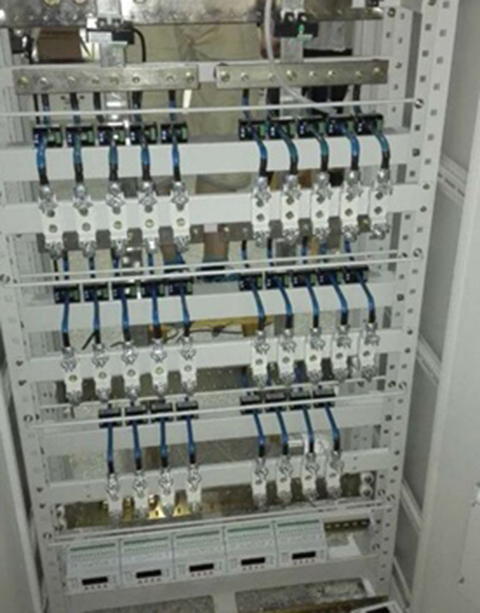

| AHKC-EKA | 0-(50-500)A | 5V/4V | 20mm | ±15V | 1.Photovoltaic DC cabinet 2.photovoltaic inverter/wind inverter 3.The data center |
AHKC-EKAA | DC 0-(50-500)A | 4-20mA | 20mm | 12V/24V | ||
| AHKC-BS | 0-(50-500)A | 5V/4V | 20.5*10.5mm | ±15V | |
| AHKC-E | 0-（200-500）A | 5V/4V | 20mm | ±15V | |
| AHKC-F | 0-（200-1000）A | 5V/4V | 43*13mm | ±15V | |
| AHKC-K | 0-（400-2000）A | 5V/4V | 64*16mm | ±15V | |
| AHLC-LTA | 100A-300A | 50mA/100mA | 20mm | ±15V | UPS |
| AHBC-LF | 2000A | 400mA | / | ±12V~±24V | 1.UPS |
| AHBC-LT1005 | 1000A | 200mA | / | ±12V~±24V | UPS |
