Accuracy



Voltage、current and power: Class 0.2

Active power: Class 0.5S; Reactive power: Class 2



Pulse Output

Output mode: Optocoupler pulse with open collector;

Pulse constant: 4000 (5A)、8000 (1A) imp/kWh；



Consumption

Voltage、current: Power consumption: <0.5VA;

Auxiliary power supply: Power consumption ≤15VA



Starting Current: 0.1%

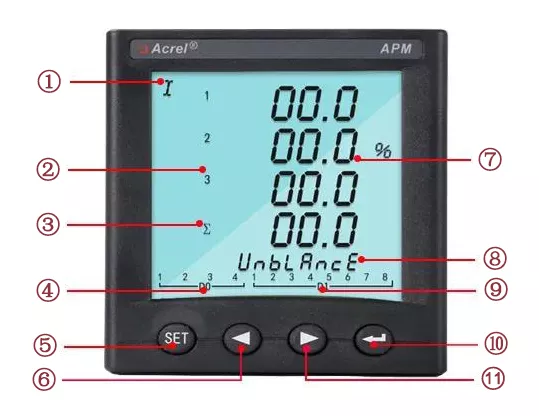

① Type of Parameters

② Load Value

③ Total Power

④ DO Status Indicator

⑤ Menu

⑥ Key Down

⑦ Data Display

⑧ Navbar

⑨ DI Status Indicator

⑩ Enter Button

⑪ Key up
